Bakery

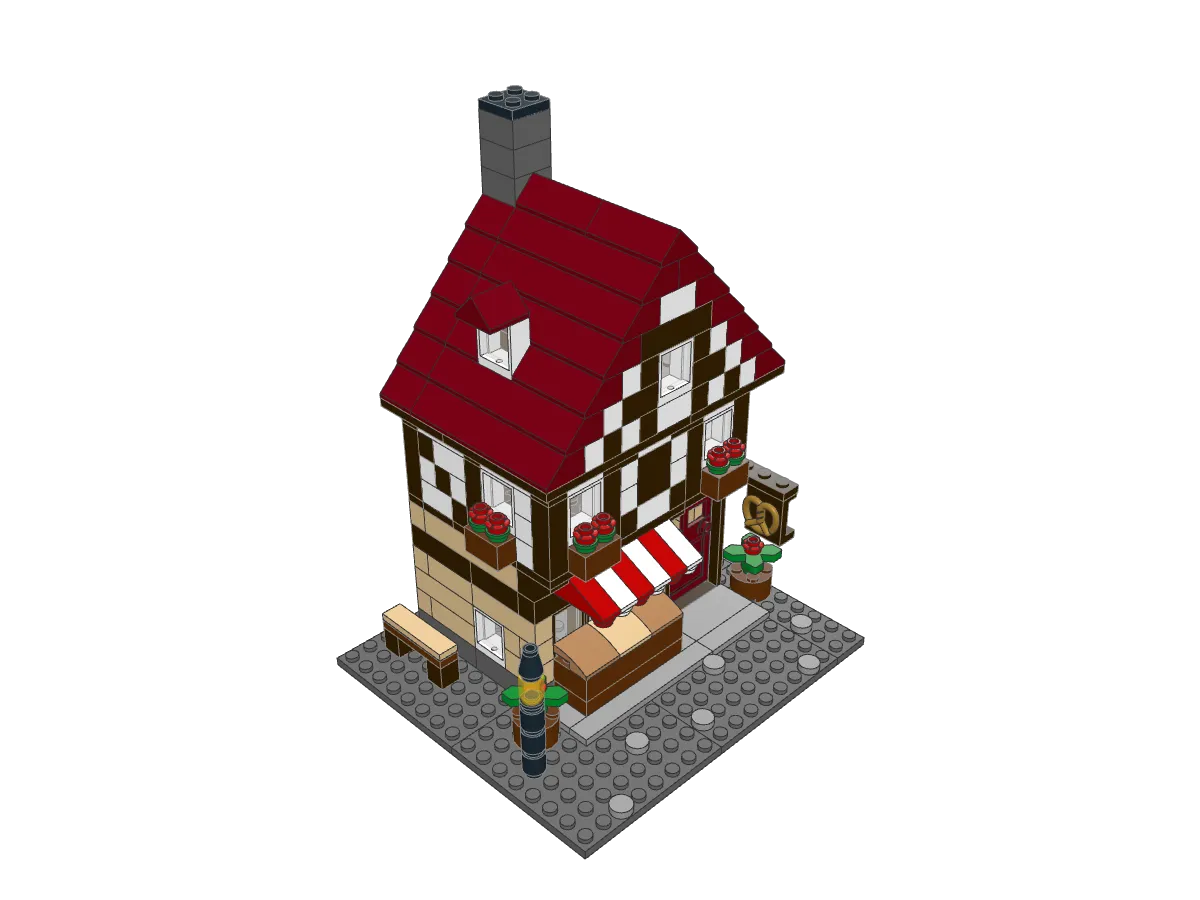

A European half-timbered town bakery with a steep dark-red roof and dormer, a jettied upper floor and gable with dark timber framing, flower boxes, a red-and-white striped awning over a bread stand, a golden pretzel sign and a cobbled street.
266 parts 19 steps Advanced
Loading 3D model Check your connection and try again.
Drag to rotate. Pinch or scroll to zoom.
Build steps
Step 1 of 19
-
Step 1 · 6 pieces
-
Plate 2 x 8 2× -
Plate 8 x 8 4×
-
-
Step 2 · 11 pieces
-
Tile 1 x 4 with Groove 1× -
Tile 1 x 2 with Groove 2× -
Tile 1 x 8 1× -
Tile 2 x 4 1× -
Tile 1 x 1 Round with Groove 6×
-
-
Step 3 · 9 pieces
-
Brick 1 x 2 1× -
Brick 1 x 8 2× -
Brick 1 x 4 2× -
Brick 1 x 3 2× -
Door 1 x 4 x 6 Frame 1× -
Door 1 x 4 x 6 with 4 Panes and Stud Handle 1×
-
-
Step 4 · 5 pieces
-
Slope Brick Curved 2 x 2 x 0.667 1× -
Brick 2 x 6 2× -
Slope Brick Curved 2 x 2 x 0.667 2×
-
-
Step 5 · 22 pieces
-
Window 1 x 2 x 2 without Sill 1× -
Brick 1 x 2 2× -
Brick 1 x 1 4× -
Brick 1 x 8 2× -
Brick 1 x 6 1× -
Brick 1 x 4 3× -
Brick 1 x 3 2× -
Glass for Window 1 x 2 x 2 without Sill 1× -
Glass for Window 1 x 2 x 3 3× -
Window 1 x 2 x 3 without Sill 3×
-
-
Step 6 · 13 pieces
-
Brick 1 x 1 1× -
Brick 1 x 8 1× -
Brick 1 x 6 1× -
Brick 1 x 4 2× -
Brick 1 x 3 1× -
Brick 1 x 2 1× -
Brick 1 x 8 2× -
Brick 1 x 4 2× -
Brick 1 x 3 2×
-
-
Step 7 · 7 pieces
Tip The two dark brown inverted slopes are corbels. Set them at the top of the front wall with the sloped face down and outward, so they appear to carry the jettied floor added in step 8.
-
Brick 1 x 8 1× -
Brick 1 x 6 3× -
Brick 1 x 4 1× -
Slope Brick 45 2 x 1 Inverted without Inner Stopper Ring 2×
-
-
Step 8 · 8 pieces
Tip The timber floor plates should overhang the front wall by exactly one stud across the full width. Check it now: the awning in step 9 hangs from this edge.
-
Plate 2 x 4 2× -
Plate 4 x 4 1× -
Plate 2 x 8 2× -
Plate 4 x 8 1× -
Plate 1 x 8 1× -
Plate 1 x 4 1×
-
-
Step 9 · 12 pieces
Tip Alternate the colors: each stripe is a 3 x 1 33-degree slope with a matching 1 x 1 round plate at its tip. Start with red at the left end; the row finishes on white.
-
Slope Brick 33 3 x 1 3× -
Plate 1 x 1 Round 3× -
Slope Brick 33 3 x 1 3× -
Plate 1 x 1 Round 3×
-
-
Step 10 · 27 pieces
Tip The sign board hangs under the arm with its flat face turned sideways along the street. The gold pretzel has no studs and clips onto that face, so fit it last in this step.
-
Brick 1 x 2 3× -
Brick 1 x 1 1× -
Brick 1 x 4 1× -
Brick 1 x 3 3× -
Brick 2 x 2 3× -
Minifig Food Pretzel 1× -
Brick 1 x 1 x 3 8× -
Brick 1 x 1 3× -
Plate 1 x 1 2× -
Plate 1 x 4 1× -
Panel 1 x 2 x 2 Reinforced 1×
-
-
Step 11 · 33 pieces
-
Brick 1 x 2 2× -
Brick 1 x 1 12× -
Brick 1 x 3 6× -
Window 1 x 2 x 2 without Sill 4× -
Glass for Window 1 x 2 x 2 without Sill 4× -
Brick 1 x 1 x 3 1× -
Brick 1 x 2 1× -
Brick 1 x 1 2× -
Brick 1 x 2 x 2 without Understud 1×
-
-
Step 12 · 30 pieces
-
Plate 1 x 1 Round 6× -
Plate 1 x 1 with 5 Petals 6× -
Brick 1 x 2 4× -
Brick 1 x 4 1× -
Brick 1 x 3 5× -
Brick 1 x 2 2× -
Brick 1 x 1 6×
-
-
Step 13 · 4 pieces
-
Plate 4 x 6 1× -
Plate 4 x 8 1× -
Plate 6 x 8 1× -
Plate 6 x 6 1×
-
-
Step 14 · 27 pieces
-
Brick 1 x 2 3× -
Brick 1 x 1 8× -
Brick 1 x 6 2× -
Brick 1 x 4 2× -
Window 1 x 2 x 2 without Sill 1× -
Glass for Window 1 x 2 x 2 without Sill 1× -
Brick 1 x 2 2× -
Brick 1 x 1 6× -
Brick 1 x 8 1× -
Brick 1 x 4 1×
-
-
Step 15 · 8 pieces
-
Slope Brick 45 2 x 2 4× -
Slope Brick 45 2 x 8 4×
-
-
Step 16 · 14 pieces
Tip Place the hidden dark brown 1 x 1 x 3 posts inside the attic first; they carry the dormer window. Then build the roof slopes around it and finish with the dormer's small cap.
-
Window 1 x 2 x 2 without Sill 1× -
Glass for Window 1 x 2 x 2 without Sill 1× -
Brick 1 x 1 x 3 2× -
Slope Brick 45 2 x 4 1× -
Slope Brick 45 2 x 2 5× -
Slope Brick 45 2 x 2 Double 1× -
Slope Brick 45 2 x 8 3×
-
-
Step 17 · 8 pieces
-
Slope Brick 45 2 x 2 4× -
Slope Brick 45 2 x 8 4×
-
-
Step 18 · 6 pieces
-
Plate 2 x 2 1× -
Brick 2 x 2 3× -
Slope Brick 45 2 x 4 Double 2×
-
-
Step 19 · 16 pieces
-
Brick 1 x 1 Round with Hollow Stud 3× -
Cone 1 x 1 1× -
Plate 1 x 1 Round 1× -
Plant Flower 2 x 2 Leaves 2× -
Plate 1 x 1 with 5 Petals 2× -
Tile 1 x 4 with Groove 1× -
Brick 1 x 1 Round with Hollow Stud 1× -
Plate 1 x 4 1× -
Brick 2 x 2 Round without Reinforcement 2× -
Brick 1 x 1 2×
-
About this build
A gold pretzel hangs from a dark brown arm at the corner of this shop. In Germany the pretzel has long served as the bakers' emblem, so the sign tells passers-by what is sold inside. The building behind it is half-timbered, a style in which a frame of heavy timber posts, beams and braces carries the house and the spaces between them are filled in.
Here the timber is dark brown and the infill is white. The ground floor is tan sandstone with a dark band, big shop windows and a bread stand piled with loaves out front. The upper floor is jettied, meaning it projects past the wall below; you will see this in steps 7 and 8, where two inverted slopes act as corbels and a layer of timber plates reaches one stud beyond the shop front. That small overhang does a lot of work. It carries the red-and-white awning in step 9 and gives the facade the stepped-out profile of an old timber-framed street.
Above the jetty, steps 10 to 12 alternate dark brown posts with white bricks, add an X brace and set flower boxes under the windows. The roof is steep and dark red, built from 45-degree slopes over steps 15 to 17, with a small dormer on one side and a chimney.
The whole scene covers 18 x 16 studs of street, uses 266 parts and takes 19 steps; plan on roughly an hour to an hour and a half. The lamp, bench and flower pots in step 19 are easy to rearrange if you want to line the bakery up with other buildings.
Parts list
How to read these instructions| Part | Name / ID | Color | Qty |
|---|---|---|---|
| Plate 2 x 23022 | Black | 1 | |
| Brick 1 x 1 Round with Hollow Stud3062b | Black | 3 | |
| Cone 1 x 14589 | Black | 1 | |
| Plate 1 x 1 Round6141 | Black | 1 | |
| Plant Flower 2 x 2 Leaves4727 | Green | 2 | |
| Plate 1 x 1 Round6141 | Green | 6 | |
| Plate 1 x 1 with 5 Petals24866 | Red | 8 | |
| Slope Brick 33 3 x 14286 | Red | 3 | |
| Plate 1 x 1 Round6141 | Red | 3 | |
| Brick 1 x 23004 | White | 12 | |
| Brick 1 x 13005 | White | 21 | |
| Brick 1 x 63009 | White | 2 | |
| Brick 1 x 43010 | White | 4 | |
| Brick 1 x 33622 | White | 14 | |
| Slope Brick 33 3 x 14286 | White | 3 | |
| Window 1 x 2 x 2 without Sill60592 | White | 7 | |
| Plate 1 x 1 Round6141 | White | 3 | |
| Slope Brick Curved 2 x 2 x 0.66715068 | Tan | 1 | |
| Tile 1 x 4 with Groove2431 | Tan | 1 | |
| Brick 1 x 23004 | Tan | 2 | |
| Brick 1 x 13005 | Tan | 5 | |
| Brick 1 x 83008 | Tan | 4 | |
| Brick 1 x 63009 | Tan | 5 | |
| Brick 1 x 43010 | Tan | 6 | |
| Brick 1 x 33622 | Tan | 3 | |
| Brick 1 x 1 Round with Hollow Stud3062b | Trans Yellow | 1 | |
| Glass for Window 1 x 2 x 2 without Sill60601 | Trans Clear | 7 | |
| Glass for Window 1 x 2 x 360602 | Trans Clear | 3 | |
| Brick 2 x 62456 | Reddish Brown | 2 | |
| Brick 2 x 23003 | Reddish Brown | 3 | |
| Plate 1 x 43710 | Reddish Brown | 1 | |
| Brick 2 x 2 Round without Reinforcement3941 | Reddish Brown | 2 | |
| Tile 1 x 4 with Groove2431 | Light Bluish Grey | 1 | |
| Tile 1 x 2 with Groove3069b | Light Bluish Grey | 2 | |
| Tile 1 x 84162 | Light Bluish Grey | 1 | |
| Tile 2 x 487079 | Light Bluish Grey | 1 | |
| Tile 1 x 1 Round with Groove98138 | Light Bluish Grey | 6 | |
| Brick 2 x 23003 | Dark Bluish Grey | 3 | |
| Brick 1 x 23004 | Dark Bluish Grey | 1 | |
| Brick 1 x 83008 | Dark Bluish Grey | 2 | |
| Brick 1 x 43010 | Dark Bluish Grey | 2 | |
| Plate 2 x 83034 | Dark Bluish Grey | 2 | |
| Brick 1 x 33622 | Dark Bluish Grey | 2 | |
| Plate 8 x 841539 | Dark Bluish Grey | 4 | |
| Slope Brick Curved 2 x 2 x 0.66715068 | Medium Nougat | 2 | |
| Minifig Food Pretzel10170 | Pearl Gold | 1 | |
| Brick 1 x 1 x 314716 | Dark Brown | 11 | |
| Brick 1 x 23004 | Dark Brown | 6 | |
| Brick 1 x 13005 | Dark Brown | 19 | |
| Brick 1 x 83008 | Dark Brown | 3 | |
| Brick 1 x 43010 | Dark Brown | 3 | |
| Plate 2 x 43020 | Dark Brown | 2 | |
| Plate 1 x 13024 | Dark Brown | 2 | |
| Plate 4 x 43031 | Dark Brown | 1 | |
| Plate 4 x 63032 | Dark Brown | 1 | |
| Plate 2 x 83034 | Dark Brown | 2 | |
| Plate 4 x 83035 | Dark Brown | 2 | |
| Plate 6 x 83036 | Dark Brown | 1 | |
| Brick 1 x 2 x 2 without Understud3245c | Dark Brown | 1 | |
| Plate 1 x 83460 | Dark Brown | 1 | |
| Brick 1 x 33622 | Dark Brown | 2 | |
| Slope Brick 45 2 x 1 Inverted without Inner Stopper Ring3665a | Dark Brown | 2 | |
| Plate 1 x 43710 | Dark Brown | 2 | |
| Plate 6 x 63958 | Dark Brown | 1 | |
| Window 1 x 2 x 3 without Sill60593 | Dark Brown | 3 | |
| Door 1 x 4 x 6 Frame60596 | Dark Brown | 1 | |
| Panel 1 x 2 x 2 Reinforced87552 | Dark Brown | 1 | |
| Slope Brick 45 2 x 43037 | Dark Red | 1 | |
| Slope Brick 45 2 x 23039 | Dark Red | 13 | |
| Slope Brick 45 2 x 4 Double3041 | Dark Red | 2 | |
| Slope Brick 45 2 x 2 Double3043 | Dark Red | 1 | |
| Slope Brick 45 2 x 84445 | Dark Red | 11 | |
| Door 1 x 4 x 6 with 4 Panes and Stud Handle60623 | Dark Red | 1 | |
| Total pieces | 266 | ||
